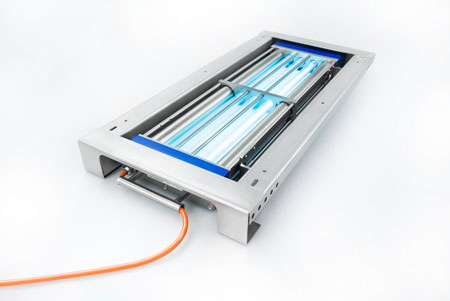

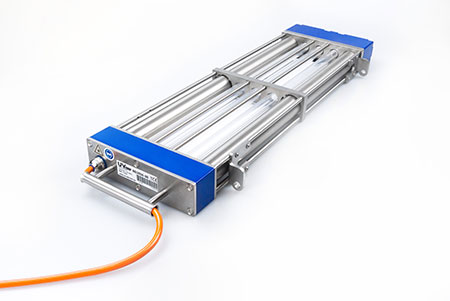

UVpro BD 2016 HD UV System for Conveyor Belt Disinfection

Rugged Waterproof Hygienic Design

The UVpro BD 2016 HD UV systems provide reliable UVC disinfection of conveyor belts and surfaces in the food industry. By mounting the UV lights below the belt, the UV radiation treats the belt surface itself without contacting the product, delivering perfect hygienic conditions all day and helping prevent cross-contamination. These belt treatment UV systems are extremely rugged, fully waterproof (IP69K TUV certified), and designed for easy cleaning in demanding hygienic environments. The UV lights install easily in both new and existing systems and can optionally include a switch-off function when moved into the cleaning position.

Questions?
Call or email us

843-306​-0070 sales@americanairandwater.com

Key Features of the BD UV Systems

  • ✓
    Reliable UV treatment of band conveyors and surfaces without irradiating the product
  • ✓
    The UV light maintains hygienic conditions all day
  • ✓
    Germicidal UV helps avoid cross-contamination
  • ✓
    The UV modules feature extremely rugged and waterproof design
  • ✓
    IP69K TUV certified
  • ✓
    The UV modules are easy to clean, thanks to their hygienic design
  • ✓
    The UV lights are easy to install on new conveyors or retrofit in existing systems
  • ✓
    Optional switch to turn germicidal UV off in cleaning position
    Conformity: EMC, CE, IP69K, IFS and HACCP
  • ✓
    Material: high grade 304 stainless steel with blue Sustarin CFG
  • ✓
    Operating temperature: 32F to 77F (0°C to 25°C)
  • ✓
    Optional mounting kit for the UV lights
  • ✓
    UV lamps replacement interval: 12,000 hours (75% ±5 % output)
  • ✓
    UV Light electronics life expectancy: >10 years
  • ✓
    Supply voltage: 220–240V 50/60Hz
  • ✓
    Power cable length: 11” (3.5m) other lengths available
  • ✓
    Application-optimized UVC for Food & Beverage, Healthcare and Pharmaceuticals industrial use

UV Systems Models & Specifications

BD 2016-40 HD UV System

Compact UV Module for narrow conveyor belts

  • ✓
    Input power: 60W
  • ✓
    Current flow: 280mA
  • ✓
    UV Lamp: KTS20-4P
  • ✓
    UVC output at 253.7nm: 27W
  • ✓
    Maximum conveyor width: 16” (400mm)
  • ✓
    Dimensions: 20”L × 8”W × 2”H (513mm × 200mm × 54mm)
  • ✓
    UV module weight: 19lbs (8.6kg)

BD 2016-60 HD UV System

Mid-size UV Module for medium conveyor widths

  • ✓
    Input power: 80W
  • ✓
    Current flow: 380mA
  • ✓
    UV Lamp: KTS30-4P
  • ✓
    UVC output at 253.7nm): 33W
  • ✓
    Maximum conveyor width: (600mm)
  • ✓
    Dimensions: 28”L × 8”W × 2”H (698mm × 200mm × 54mm)
  • ✓
    UV module weight: 24lbs (11.1kg)

BD 2016-80 HD UV System

Large UV Module for wide conveyor belts

  • ✓
  • ✓
    Input power: 120W
  • ✓
    Current flow: 550mA
  • ✓
    UV Lamp: KTS40-4P
  • ✓
    UVC output at 253.7nm: 48W
  • ✓
    Maximum conveyor width: 31” (800mm)
  • ✓
    Dimensions: 37”L × 8”W × 2”H (955mm × 200mm × 54mm)
  • ✓
    Weight: 32lbs (14.7kg)

BD 2016-100 HD UV System

Highest-capacity UV Module for very wide conveyor belts

  • ✓
    Input power: 180W
  • ✓
    Current flow: 800mA
  • ✓
    UV Lamp: KTS50-4P
  • ✓
    UVC output at 253.7nm: 60W
  • ✓
    Maximum conveyor width: 39” (1m)
  • ✓
    Dimensions: 45”L × 8”W × 2”H (1155mm × 200mm × 54mm)
  • ✓
    Weight: 38lbs (17.2kg)

Choosing the Right UV System

Mechanical Construction

Select the UV Module according to the maximum width of your conveyor belt 16”, 28” 37” or 45” (400mm, 600mm, 800mm or 1000mm). All BD UV Modules share the same rugged IP69K hygienic construction, long life UV lamps and simple mounting options, so you can scale disinfection performance precisely to the belt size while keeping installation and cleaning straightforward.
