UVpro FM Flange UV Module Specifications

UV Product Overview

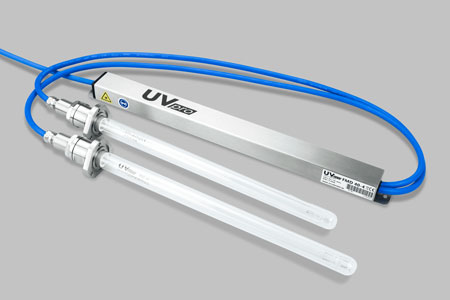

The UVpro FM Flange UV Module is designed for reliable UVC disinfection in demanding industrial environments. Available in both single-lamp and double-lamp configurations, the FM UV series offers flexible installation in air ducts, storage tanks, basins, processing equipment, and crate washing systems. The hygienic stainless-steel construction and IP68-rated waterproof design of the UV light allow for permanent immersion where required.

Questions?
Call or email us

843-306​-0070 sales@americanairandwater.com

Applications

The UVpro FM is suitable for a wide variety of industrial installations, including:

  • ✓
  • Air handling systems
  • ✓
    Ventilation ducts
  • ✓
    Water storage tanks
  • ✓
    Basins
  • ✓
    Process equipment
  • ✓
    Crate washing systems
  • ✓
    Food & beverage facilities
  • ✓
    Pharmaceutical manufacturing
  • ✓
    Healthcare applications
  • ✓
    General industrial UV systems

Electrical Specifications

The UV system operates on a universal power supply of 110–230V 50/60Hz, making it suitable for installations worldwide.

Depending on the selected lamp configuration, input power ranges from 41W to 82W.

Typical operating current ranges from 0.10A to 0.56A,depending on the selected model.

UV Performance

The FM series produces total UV output ranging from 7W to 28W, depending on UV lamp configuration.

Measured UV intensity at one meter reaches up to 150µW/cm², providing effective germicidal performance for demanding disinfection applications.

The UV lamps emit germicidal UV-C light at 253.7nm wavelength.

Mechanical Construction

The flange module is manufactured from high-quality stainless steel:

  • ✓
    V2A 1.4301 (304)
  • ✓
    Optional V4A 1.4404 (316L)

This construction provides excellent corrosion resistance and long service life, even in harsh industrial environments.

Environmental Performance

The UVpro FM is designed for demanding operating conditions.

  • ✓
    Suitable for complete immersion in water
  • ✓
    IP68 waterproof rating
  • ✓
    Operating temperature starts at approximately 32.8°F (customizable versions available)
  • ✓
    Optimal lamp ambient temperature:
  • →
    K-type lamps: 32–77°F
  • →
    N-type lamps: 68–104°F

Service Life

The UVpro FM is engineered for long-term operation with minimal maintenance.

  • ✓
    Lamp replacement interval: 12,000 operating hours (approximately 75% UV output remaining)
  • ✓
    Electronics service life: More than 10 years

Certifications

The FM flange module complies with major international standards, including:

  • ✓
    EMC
  • ✓
    FCC
  • ✓
    CE
  • ✓
    IP68 certification
  • ✓
    NRTL
  • ✓
    TÜV Süd testing
  • ✓
    UL-listed ballasts

Key Benefits of the UV system

  • ✓
    Available in single-lamp or double-lamp versions
  • ✓
    Easy installation in new or existing systems
  • ✓
    Hygienic stainless-steel construction
  • ✓
    Suitable for full immersion (IP68)
  • ✓
    Long lamp life with low maintenance requirements
  • ✓
    Flexible installation across a wide range of industrial applications
  • ✓
    Designed for food processing, healthcare, pharmaceutical, and industrial UV disinfection

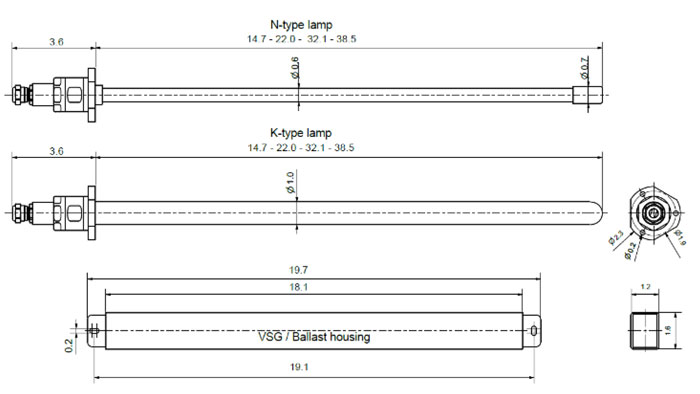

Available UV Lamp Models

The FM flange module supports the following UVpro lamps:

  • ✓
    UVpro K(T) 20-4P 15" UV lamp
  • ✓
    UVpro K(T) 30-4P 22" UV lamp
  • ✓
    UVpro K(T) 40-4P 32" UV lamp
  • ✓
    UVpro N(T) 20-4P 15" UV lamp
  • ✓
    UVpro N(T) 30-4P 22" UV lamp
  • ✓
    UVpro N(T) 40-4P 32" UV lamp
