UVpro V300 / V500 / V1000 Air Treatment UV Systems

UV systems without compromise

These stainless-steel UVpro ventilating air treatment UV systems deliver reliable, high-performance UVC air disinfection for industrial environments. They are designed for easy installation in new construction or retrofit in existing facilities to deliver continuous air recirculation and disinfection in production, ripening and storage rooms, halls and large waiting areas. All UV systems feature corrosion-resistant reflectors and are optimized for Food & Beverage, Healthcare and Pharmaceuticals applications.

Questions?
Call or email us

843-306​-0070 sales@americanairandwater.com

UVpro V systems shared features:

  • ✓
    Suitable for new construction or retrofit installations
  • ✓
    Reliable UV air disinfection in food production, halls and large spaces
  • ✓

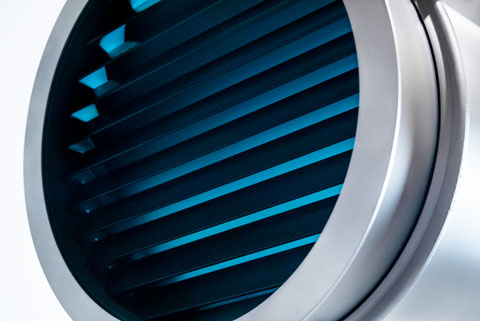

    Corrosion-resistant reflector
  • ✓
    Easy installation with 2 eyelets for chain attachment
  • ✓
    Suitable for production, ripening and storage rooms
  • ✓
    Stainless steel construction
  • ✓
    Operating temperature: 14F to 104F (–10°C to +40°C)
  • ✓
    IP54, EMC and CE conformity
  • ✓
    UV Lamp replacement interval: 12,000 hours
  • ✓
    Electronics life expectancy: > 10 years
  • ✓
    Supply voltage: 220–240V 50/60Hz
  • ✓
    Standard power cable: 16’ (5m), other lengths available
  • ✓
    Application-optimized UVC for Food & Beverage, Healthcare and Pharmaceuticals industrial use

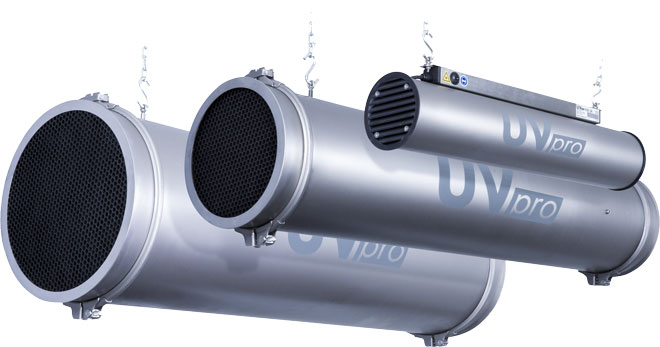

UV Systems Overview & Model Differences

UVpro V300

Compact UV system, ideal for small to medium areas. Disinfects up to 300m³/h of indoor air. Offers an excellent price-performance ratio.

  • ✓
    Air flow: 175CFM
  • ✓
    UVC output at 253.7nm wavelength: 28W
  • ✓
    2 UV Lamps: UVpro K(T)40-4P (41W each)
  • ✓
    Input power: 92W
  • ✓
    Noise emission: 34dB
  • ✓
    Dimensions: 43”L x 9”D (1092mm L × 234mm Ø)
  • ✓
    Weight: 30lbs (13.8kg)

UVpro V500

Mid-range UV system with two-stage ventilation that significantly increases the UVC dose, enabling mold spores to be killed in a single pass. Disinfects up to 450m³/h of indoor air.

  • ✓
  • ✓
    Air flow: 145CFM / 265CFM (switchable)
  • ✓
    Total UVC output at 253.7nm: 56W
    4 UV Lamps: UVpro KT40-4P (41W each)
  • ✓
    Input power: 174W
  • ✓
    Noise emission: 34 / 41dB (two-stage)
  • ✓
    Dimensions: 43”L x 12”D (1091mm L × 314mm Ø)
  • ✓
    Weight: 54lbs (24.5kg)

UVpro V1000

High capacity UV system with adjustable ventilation rate for precise regulation and significant increase in UVC dose. Mold spores are killed in a single pass through the UV chamber. Capacity up to 800m³/h

  • ✓
  • Air volume: 145CFM / 470CFM (adjustable)
  • ✓
    UVC output at 253.7nm: 84W
  • ✓
    6 UV Lamps: UVpro K(T)40-4P (41W each)
  • ✓
    Input power: 296W
  • ✓
    Noise emission: 30–51dB (adjustable)
  • ✓
    Dimensions: 43”L x 12”D (1091mm L × 314mm Ø)
  • ✓
    Weight: 65lbs (29.5kg)

Choosing the Right UV Air Disinfection System

Mechanical Construction

  • ✓
    UVpro V300 is the best UV system for smaller spaces or budget-conscious installations where fixed 175CFM air flow capacity and lower noise/power are sufficient.
  • ✓
    UVpro V500 is ideal when higher UV dose with two-stage airflow (up to 265CFM) is needed to tackle mold more effectively.
  • ✓
    UVpro V1000 UV system is preferred for large areas requiring flexible airflow control (145CFM - 470CFM) and maximum UVC output.

All UV models share the same robust stainless-steel build, long lasting UV lamps and simple chain-mounted installation, making these UV systems easy to scale across different room sizes and disinfection requirements.
